Description
Product Name:
G-energy N200V5-A Slim 5V 40A 200W LED Display Power Supply
3CM Thickness support 220V AC Input Voltage.
input voltage:200-240Vac,47-63Hz
Output power:200W Max
Power factor:0.50@230Vac
Insulation voltage:I/P-O/P:3.0KVac
I/P-FG:1.5KVac;O/P-FG:0.5KVac
Leakage current:0.30mA@230Vac
Protection:undervoltage,Overload,Short circuit
Working temperature:-30~+60℃
Storage temperature:-40~+100℃
Safety standards:GB4943,EN60950
Dissipate heat:Air cooling
Size:195×110×30

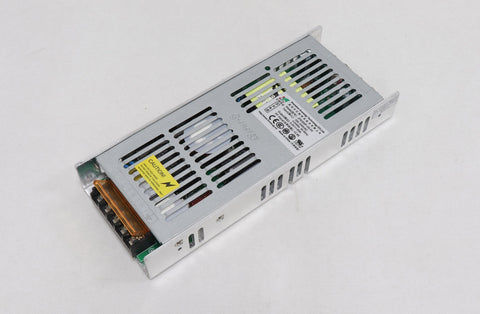

G-Energy JPS300P-A5.0V Full Color LED Video Screen Power Supply Features:
Output power: 300W Max
Leakage current: <1 mA (VIN: 230)
Working temperature: -30 ° C ~ 50 ° C
Cooling method: self-cooling
Storage temperature: -40~80°C
Input voltage: 100-240VAC, 47-63Hz
Insulation voltage: I / P-O / P: 3.0KVac; I / P-FG: 1.5KVAC; O / P-FG: 0.5KVAC
Safety standards: GB4943, EN60950
Protection function: input undervoltage, overload protection, short circuit protection
Power factor: 0.95@230Vac
Size: length × width × height = 213 × 85 × 30
G-Energy JPS300P-A5.0V Full Color LED Video Screen Power Supply Parameter:
| Model | Classification | Output voltage | Output current | Ripple & Noise | Efficiency |
| JPS300P-A5.0V | Constant pressure | 5V | 0-60A | ≤200mV | ≥88% |
