Description

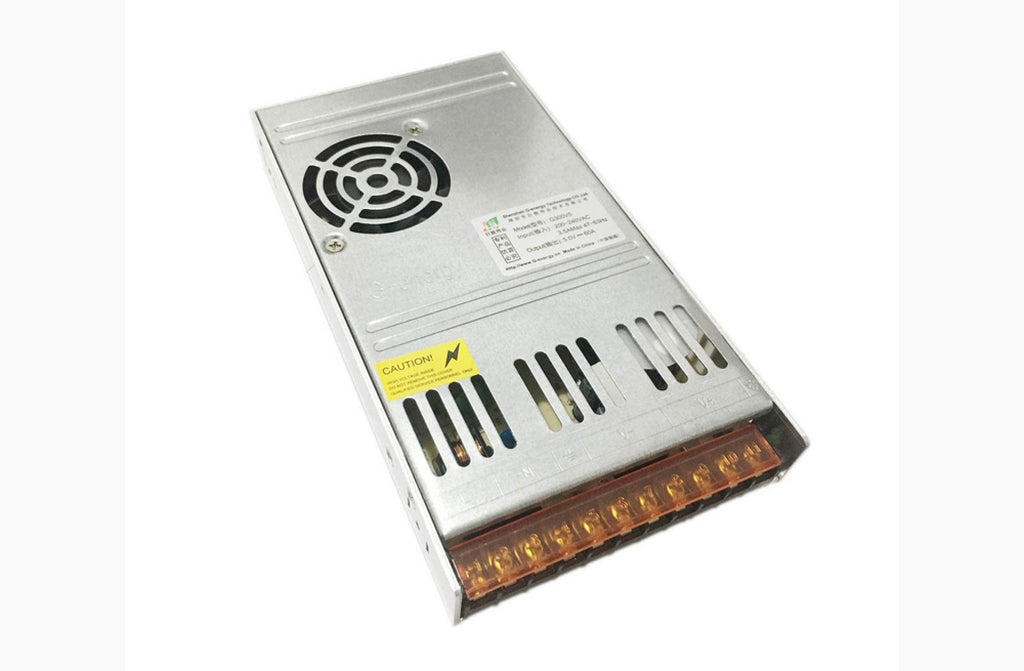

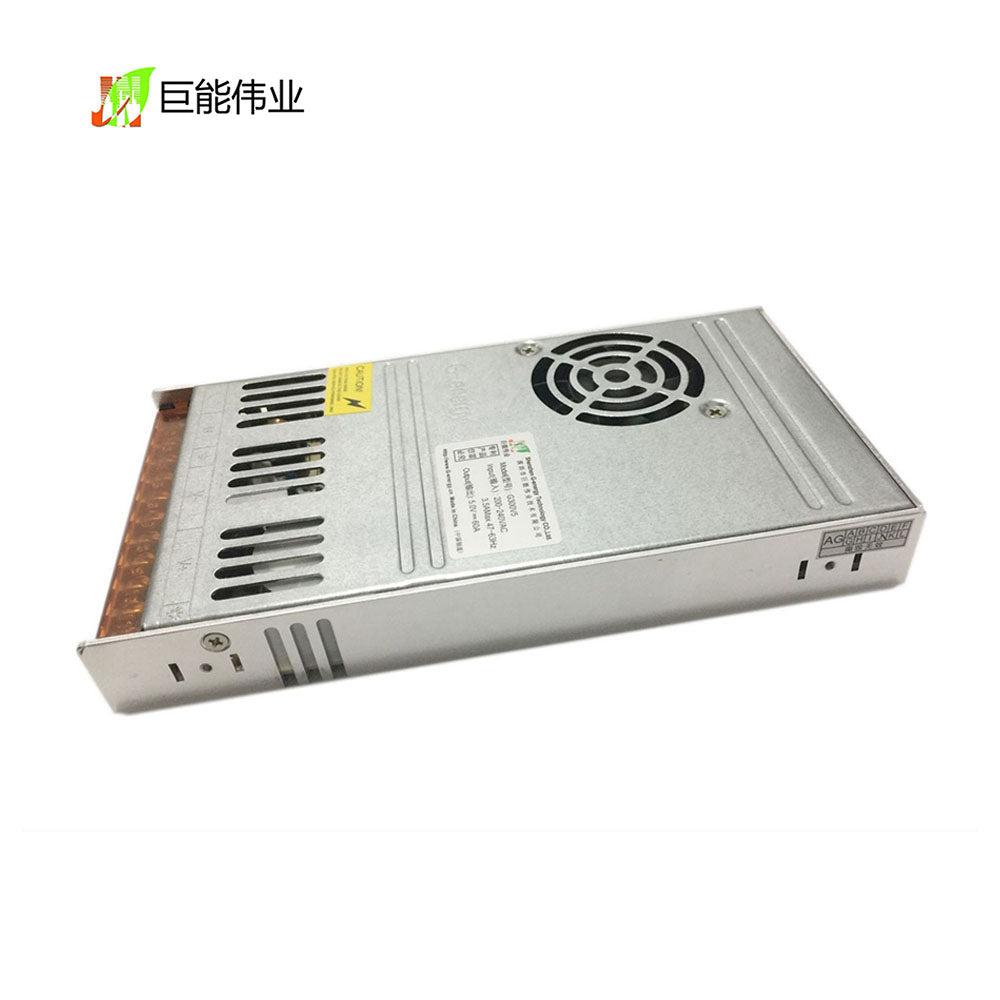

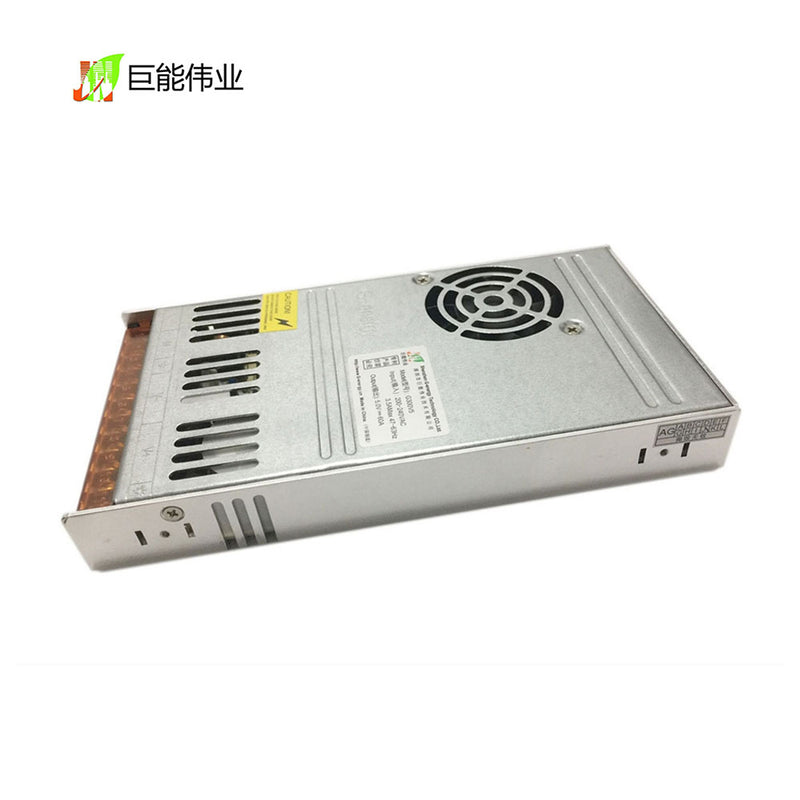

G-Energy G300V5 Full Color LED Video Sign Power Supply Features
Output power: 300W Max
Leakage current: <1mA (Vin: 230)
Working temperature: -30 ° C ~ 60 ° C
Cooling method: air cooling
Storage temperature: -40~80°C
Input voltage: 200-240Vac, 47-63Hz
Insulation voltage: I/P-O/P: 3.0KVac; I/P-FG: 1.5KVac; O/P-FG: 0.5KVac
Safety standards: GB4943, EN60950
Protection function: input undervoltage, overload protection, short circuit protection
Power factor: 0.50@230Vac
Size: length × width × height = 217 × 117 × 30
G-Energy G300V5 Full Color LED Video Sign Power Supply Parameter"
Model | Classification | Output voltage | Output current | Ripple & Noise | Efficiency |
G300V5 | Constant pressure | 5V | 0-60A | ≤200mV | ≥86% |
