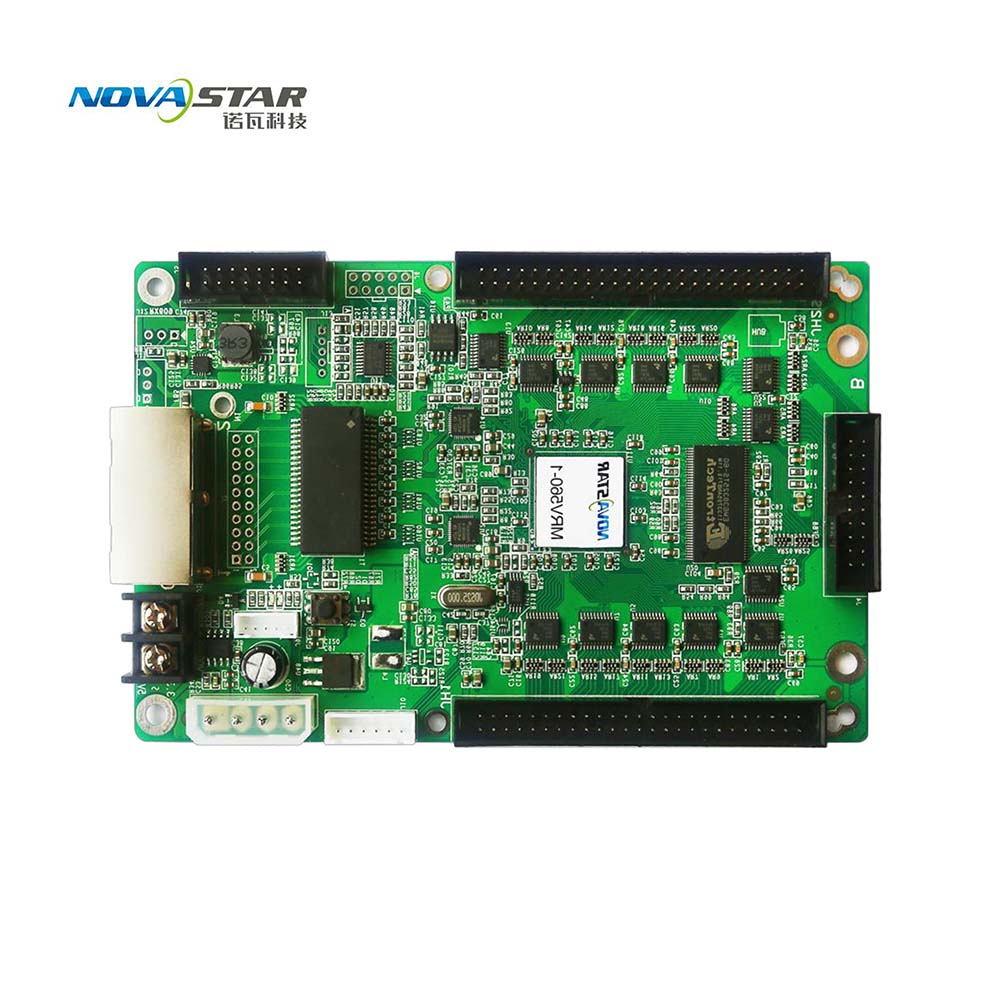

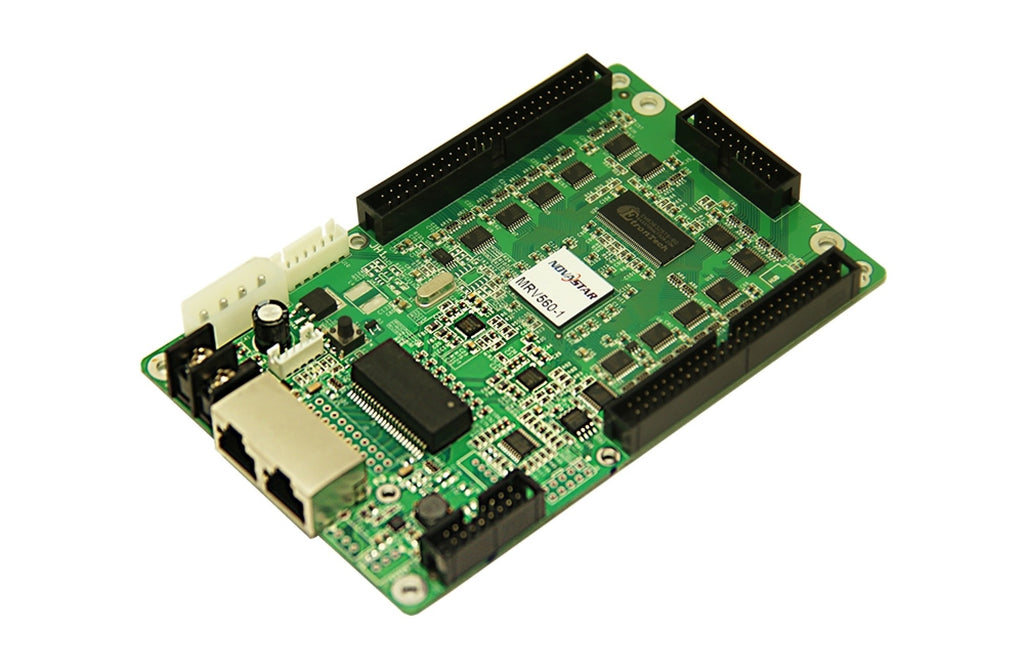

Novastar MRV560-1 EMC LED Display Controller Card Features:
MRV560 is the EMC version of MRV360 with its effective reduction of the electromagnetic radiation of the whole system.
1)Single card outputs 16-group of RGBR 'data;
2)Single card outputs 20-group of RGB data;
3)Single card outputs 64-group of serial data;
4)MOM can store calibration coefficient and LED module information;
5)Single card supports resolution of 256x226;
6)Configuration file readback;
7)Temperature monitoring；
8)Ethernet cable communication status detection;
9)Power supply voltage detection;
10)High gray scale and high refresh rate;
11)Pixel-by-pixel brightness and chromaticity calibration.
12)Brightness and chromaticity calibration coefficients for each LED;
13)Pre-store picture setting;
14)Able to connect monitoring card to achieve comprehensive monitoring;
15)Comply with RoHS standard;
16)Comply with EU CE-EMC Class B standard.
Recognition of Novastar MRV560 Series Card:
To meet theneeds of different customers, Nova provides more specific models of the products,including standard products in stock, other models need to be customized;
|
Model |
Specification |
|
MRV560－1 |
Standard model, male connector on top |
|
MRV560－2 |
Male connector on bottom |
|
MRV560－3 |
Female connector on top |
|
MRV560－4 |
Female connector on bottom |
Novastar MRV560-1 EMC LED Display Controller Card Connect Interface Definition:
J4 definition（MOM interface）:
|
GND |
1 |
2 |
SPI_CS |
|
SPI_CLK |
3 |
4 |
SPI_MOSI |
|
CODE0 |
5 |
6 |
H164_CSD |
|
CODE1 |
7 |
8 |
H164_CLK |
|
CODE2 |
9 |
10 |
|
|
|
11 |
12 |
CODE3 |
|
CODE4 |
13 |
14 |
|
|
|
15 |
16 |
SPI_MISO |
|
|
17 |
18 |
|
|
|
19 |
20 |
GND |
J9 definition（Indicator light Socket）:
|
1 |
2 |
3 |
4 |
5 |
|
STA_LED |
LED +/3.3V |
PWR_LED - |
KEY + |
KEY -/GND |
J10 definition（Indicator Socket）:
|
1 |
2 |
3 |
4 |
5 |
6 |
|
KEY + |
KEY - |
PWR_LED+ |
PWR_LED- |
STA_LED+ |
STA_LED- |
