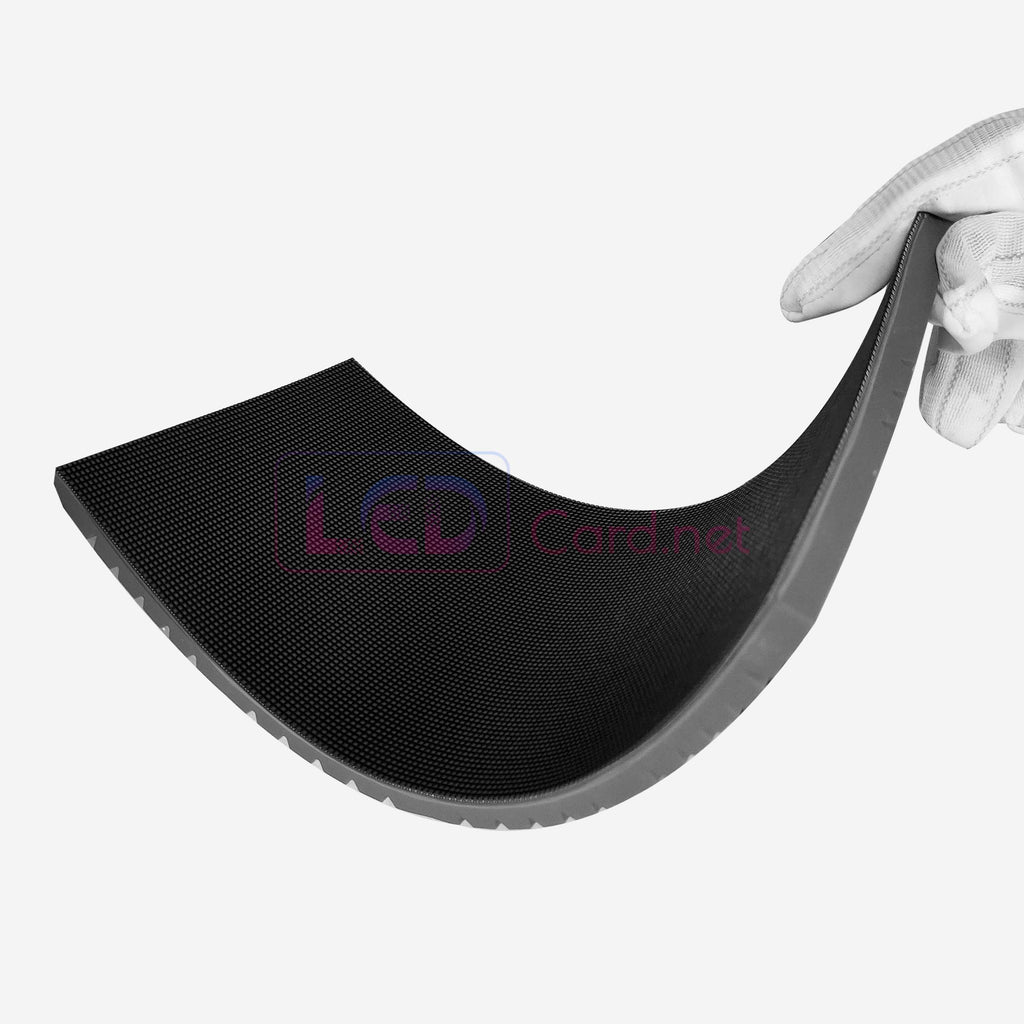

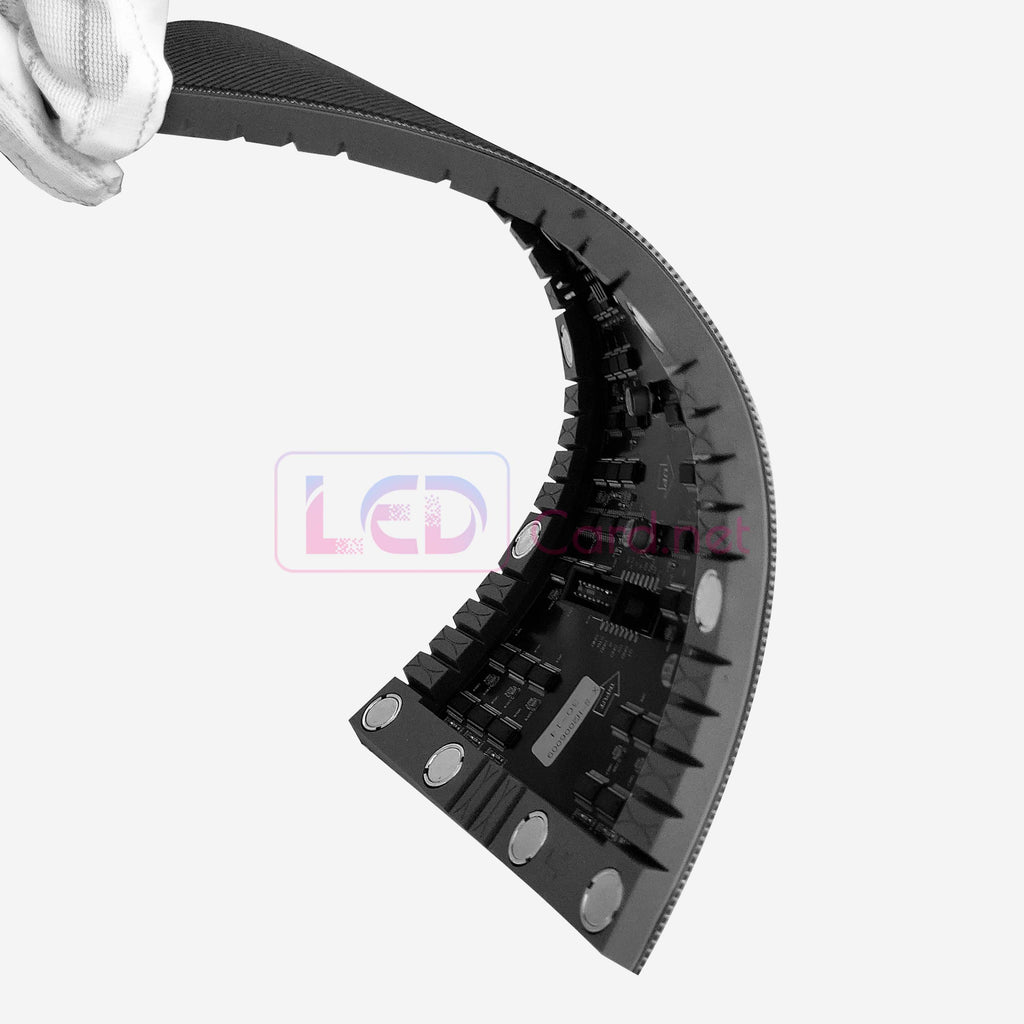

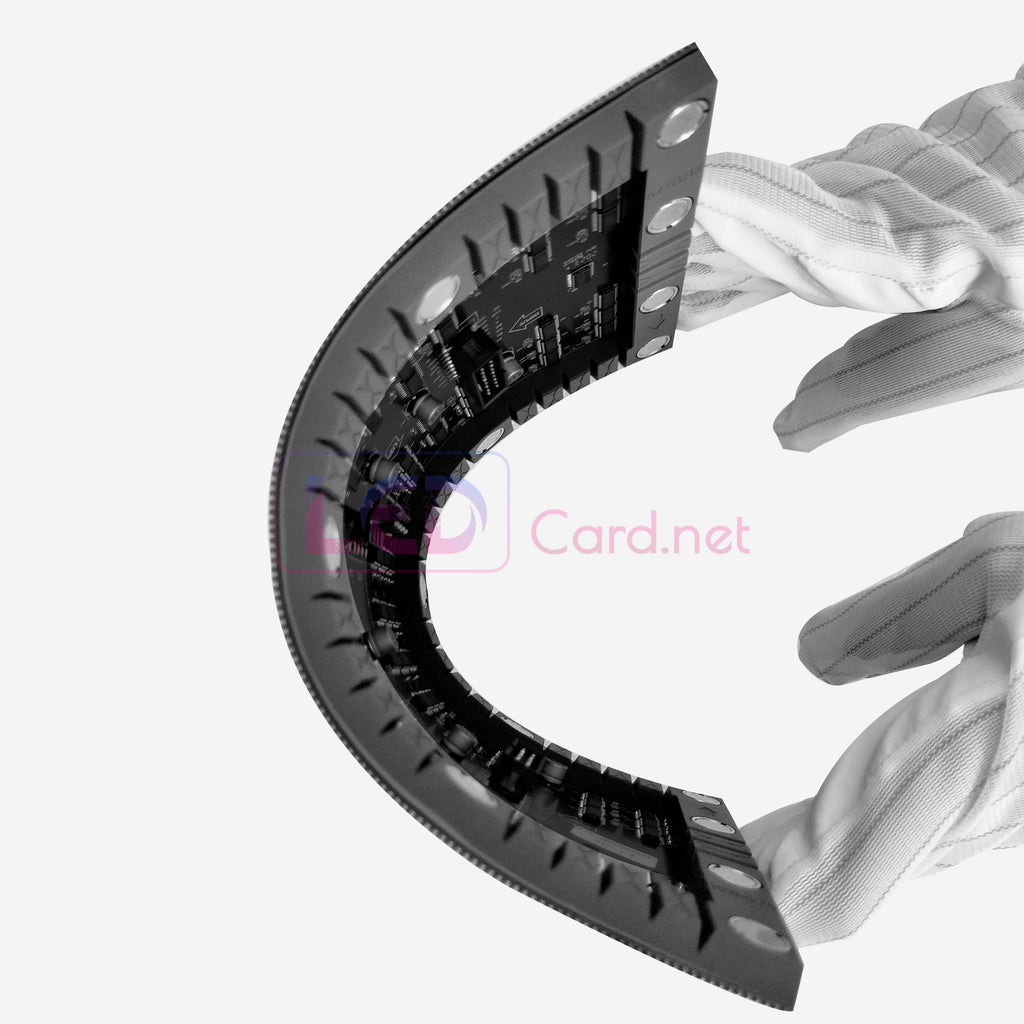

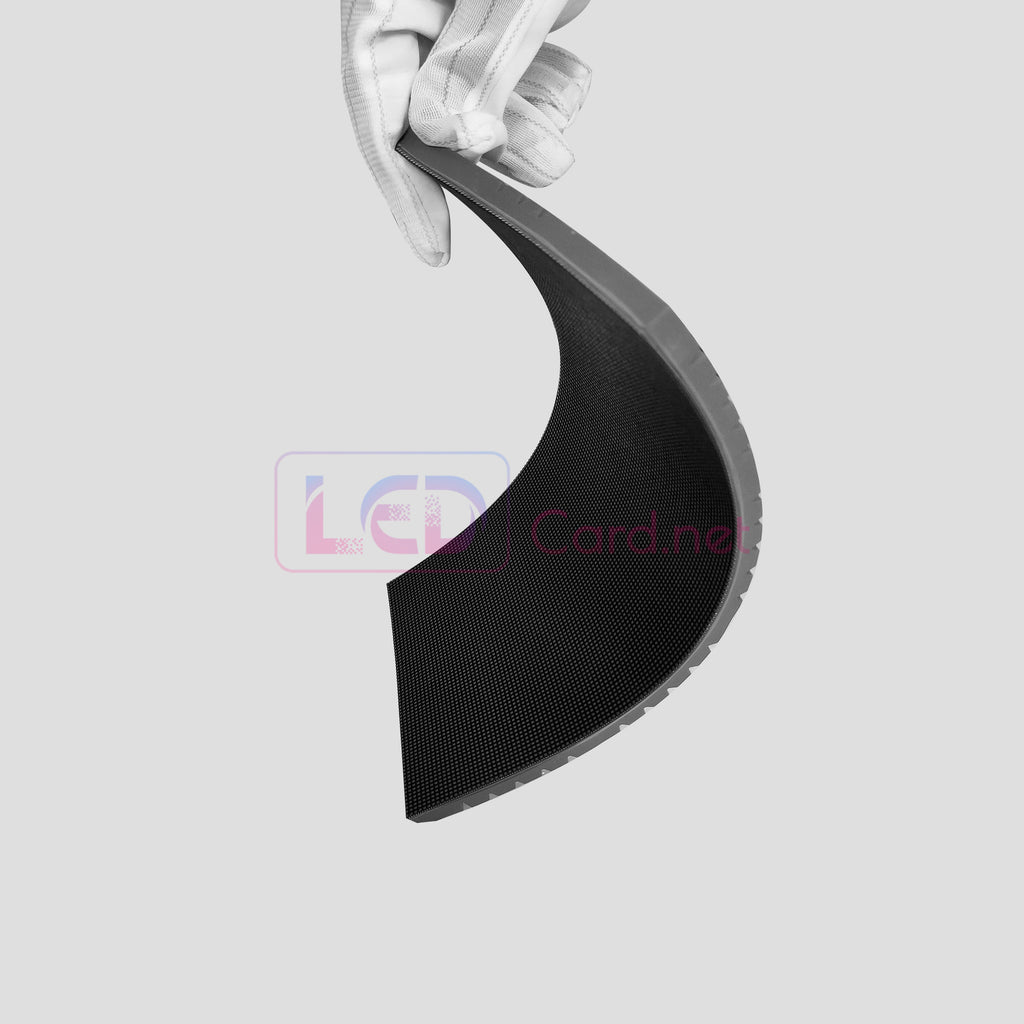

P1.25mm Indoor 240mmx120mm Flexible Soft LED Display Module

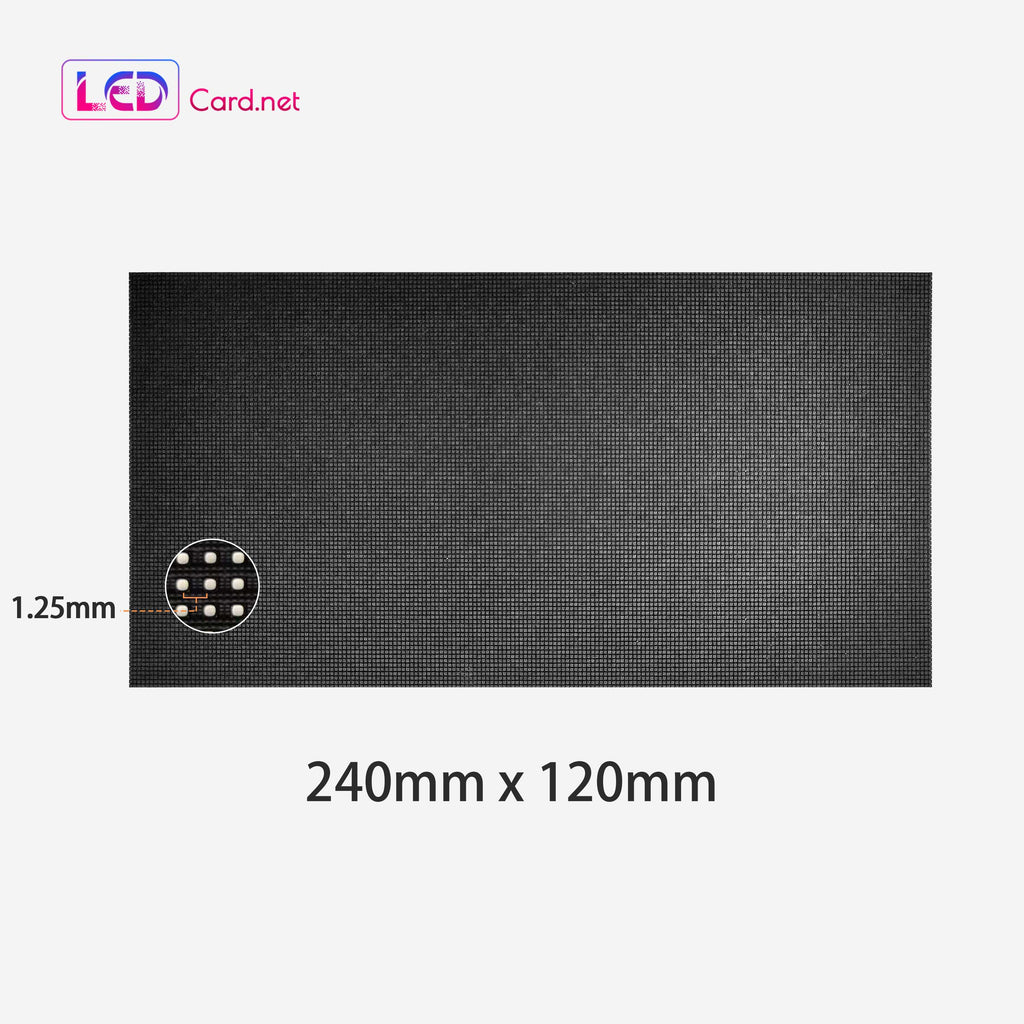

P1.25mm Flexible Soft LED Display Module Size is 240mmx120mm
Attention:
- We recommend that you buy the same batch led modules at once for the Same LED Display. Because different batches of led modules have different brightness and display colors, even different config files.
- If you want to build led screen, please buy enough LED Modules and spare p
- Tariffs or Duties at the destination not included. If you have questions about Importation to your country, please contact us online sales.
Remark:
- LED Module including the Data & Power Cables.
- 2 Years Warranty, Ship in 1-3 Working Days, Free Online Support.
- 72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)before shipping
- We can provide aging test photos for your order, please contact online service.
Main Specifications:
| P1.25 Soft Flexible SMD LED Module 200x150mm Specifications | ||
| SKU ID | SOFT-240SMD-P125-IN | |
| Physical Parameters |
Pixel Pitch（ mm） | P1.25mm |
| LED Configuration | SMD1010 | |
| Module Resolution(dots) | 192*96 | |
| Pixel Density（ dots /m²） | 640000 | |
| Module Size（W x H x D）/( mm) | 240mm*120mm | |
| Module Weight( Per/kg) | 0.21kg | |
| Optical Processing | Color processing (Bit) | 16 |
| Grey Level | 65536 | |
| Refresh Rate（Hz） | ≥3840Hz | |
| Driving Mode(scan) | 1/48S | |
| Brightness（ nit） | 650cd/㎡ | |
| Viewing Angle（ H/V） | 140°/140° | |
| Electrical Parameters |
Input Voltage（V） | AC110/220V±10% |
| Input Power Frequency（Hz） | 50/60 | |
| Max Current（A/Pc) | 3.8A | |
| Max Power（W/pcs） | 19W | |
| Operating Environment | Storage Temperature (℃） | From '-10 to 50 |
| Operating Temperature（ ℃） | From '0 to 40 | |
| Storage Humidity（RH） | 10%~90% | |
| Operating Humidity（RH） | 10%~90% | |
| IP Rating | IP65/IP54 | |
| Lifetime（hrs） | 100000 | |
| Usage Environment | Indoor fixed installation | |
| Maintenance Method | Front/Rear Maintenance | |
